Yateks M-UV Series Ultraviolet Industrial Borescope

UV borescope with the 365nm UV waveband
ultraviolet light power ≥60mW can achieve 4-meter.
Mechanical 360°articulation and weighs only 0.75kg.

Yateks M-UV Series Ultraviolet Borescope is a type of specially designed industrial endoscope for checking UV fluorescence reactant in special industries, such as the special coating on the engine, explosive components, etc. It is widely used in the work of special coating reverse optimization, anti-terrorist, hazardous article searching, etc., with which the UV fluorescent reactant can be quickly detected.

Technical Advantages:

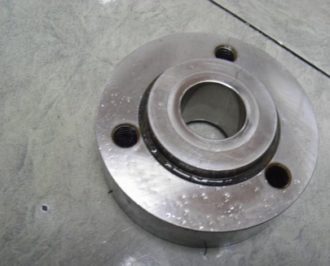

1.The basic principle of UV Borescope is that when certain substances are exposed to ultraviolet light, there is a fluorescent reaction that can be easily observed. Special industries such as engine special coatings and specific explosive components contain ultraviolet fluorescent reactants.In simulation experiment below, the hair is simulated as a crack on the surface and it is detected by Yateks M-UV Borescope.

Under UV light

2.UV light effect can help to detect those marks and substance that can’t be found under ordinary white light.

3. Fluorescence detection of PT and MT in UV light mode, emission of UV 365nm band

4.Mechanical 360°articulation , the biggest bending angle of single direction is 180°.

Applications:

Widely used in the work of special coating reverse optimization, anti-terrorist, hazardous substance searching. The UV fluorescents can be quickly detected.

Specification

Technical Specification:

1. System
Size	315103173mm
Weight	0.75KG
Monitor	High brightness 3.5’’ active matrix color liquid crystal display (640*480)
White Balance	Automatic white balance
Joystick Control	Mechanical 360° full direction articulation
Direction Locking	Mechanical automatic locking
Function	Take photos, record videos, record audios, brightness adjustment, locking and fine adjustment, picture zooming in/out, image freeze and flip
Audio	Integrated 3.5mm headphone (Optional)
Storage	16G
Data Port	SD card interface, headset interface, HDMI interface, Micro USB interface(charging and data reading)
Battery	One 18650 Li-battery（Replaceable）
Standby Time	≥4h
Brightness Adjustment	6 levels of brightness level
2. Software
User Interface	List operating menu
File Management	Support photo/video playback, delete, format
Image Control	Flip, zooming, freeze; color/black and white image mode;
Picture Format	JPEG/JPG（Record date and time）
Video Format	AVI（Record date and time）
Language	En, CN, Kr, ES, De, RU, JP
Software Update	Update via port
3. Insertion tube Specification
Insertion tube outer diameter	6.0±0.1 mm/ 3.9±1mm
Insertion tube length	1.0m,1.5m, 2.0m,3.0m
Insertion tube material	Tungsten-braided
Articulation	360° mechanical arbitrary direction
Bending angle	150±10°
Effective pixels	Forward view 450, 000pixels
Depth of Field	3~50mm
Field of View	80°
UV light power	≥60mW
UV waveband	365nm
4. Operating environment
Main body working temperature	-10°C~50°C
Probe working temperature	-20°C~70°C
Relative humidity	Highest 90%, no condensation
Waterproof	Probe IP67/Mainbody IP54

Models

Shipment

Shipping of Yateks M-UV series industrial endoscope

Package dimension: 500*155*425mm

Net Weight: 5.6 kg

Volume Weight: 7.6 kg
