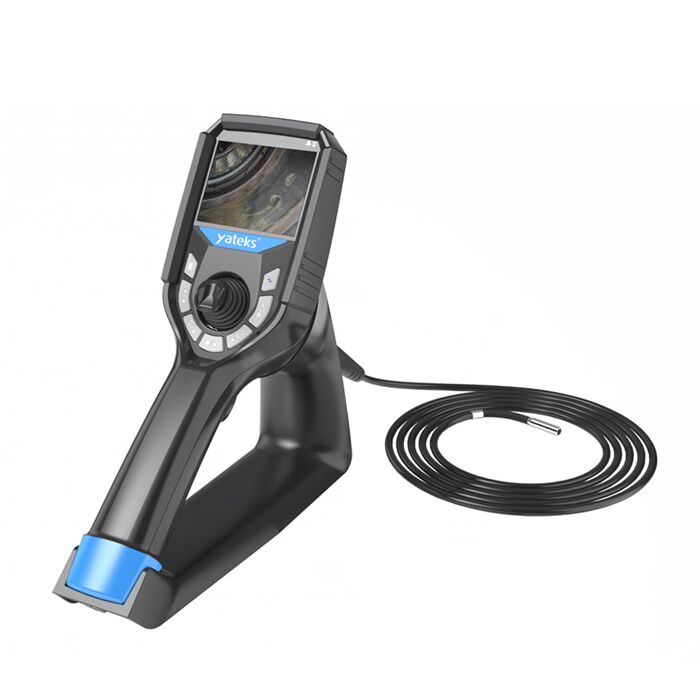

Yateks M-ADV Series Industrial Videoscope

Yateks M-ADV Series Industrial Videoscope is a newly released product updated from yateks M serie with much better image quality and more insertion tube diameters are available.High definition, portable, flexible, versatile — M-ADV Series, all-round upgrade!  It adopts the latest HD image processing technology and high resolution 640*480 screen to ensure high definition image, even minor defects can be inspected. In the meantime, it has 2 levels of strong light inhibition, which can ensure a clear view while inspecting the reflective objects(such as metal surface)；and it also possesses 2 levels of weak light compensation, which can help to ensure enough light source so that it can reach further observation distance and clearer image.

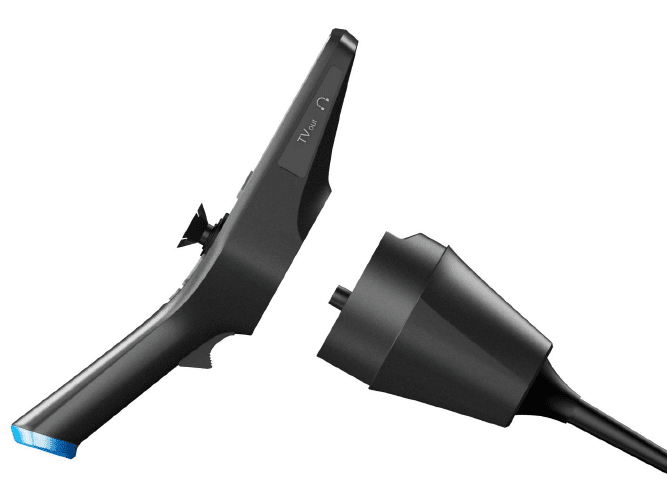

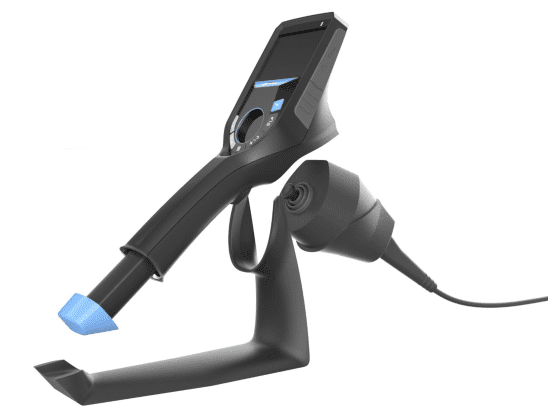

Type A base unit can be compatible for different probes such as 2.2mm, 2.8mm, 3.9mm short tip, 3.9mm UV and 6.0mm UV. Type B base unit can be compatible for for different probes such as regular 3.9mm, 6.0mm, 6.0mm dual camera. One base unit, different insertion tubes, you can gain the best match with the best price to satisfy multiple applications.

Technical Advantages：

1. Adopting brand-new HD image processing technology, ultra-clear image, minor defects are all under your view.

2. LED illumination way, brightness is up to 10000lux;

3. Upgraded to 640*480 high definition IPS screen, wider viewing angle, clearer display, more outstanding color rendition, real-time showing still image and dynamic videos of the inspected objects.

4. The camera module head adopts 316 stainless material, which has better corrosion-resistant feature than 304 stainless on the market. In the meantime, four tungsten-braided layers can help it to be more wear-resistant and IP67 rated.

5. Unique strong light inhibition and weak light compensation; (strong light inhibition can ensure the clear view while inspecting the reflective objects(such as metal surface); weak light compensation can help to ensure enough light source so that it can reach further observation distance and clearer image.)

Other functions：

• Camera options including 2.2mm, 2.8mm, 3.9mm，6mm forward view, satisfy different application demands;
• 360° mechanical arbitrary articulation, 180° bending angle —— convenient, accurate and automatic locking of direction.
• The image can flip, freeze, zooming for 4 times, for the convenience of analysis to minor defects.
• The base unit can accept all digital lossless video data, which can gather and save complete camera data.
• Adopt 2pcs international standard rechargeable 18650 Li-batteries, the standby time can reach 6 hours.
