INTRODUCTION:
The Realta 3D series is equipped with a 7-inch IPS eye-care display (1920×1200), powered by Yateks’ patented technology and a custom graphics processor to deliver stunning image detail. Built for challenging environments, it enables long-range inspection of deep, narrow channels. By integrating optics, precision mechanics, electronics, and microscopic imaging, this advanced NDT instrument accurately exposes hidden surface defects.
TECHNICAL ADVANTAGES:
1. Advanced measurement technologies
Rapid, Comprehensive Modeling: Generate a precise 3D model directly on the device in 3-4 seconds, with an imaging area coverage of 80% for efficient full-scene capture.
Unmatched Precision & Detail: Achieve measurement accuracy of ≤0.05 mm and produce high-definition 3D point clouds that faithfully recreate an object’s external contour and surface topography.

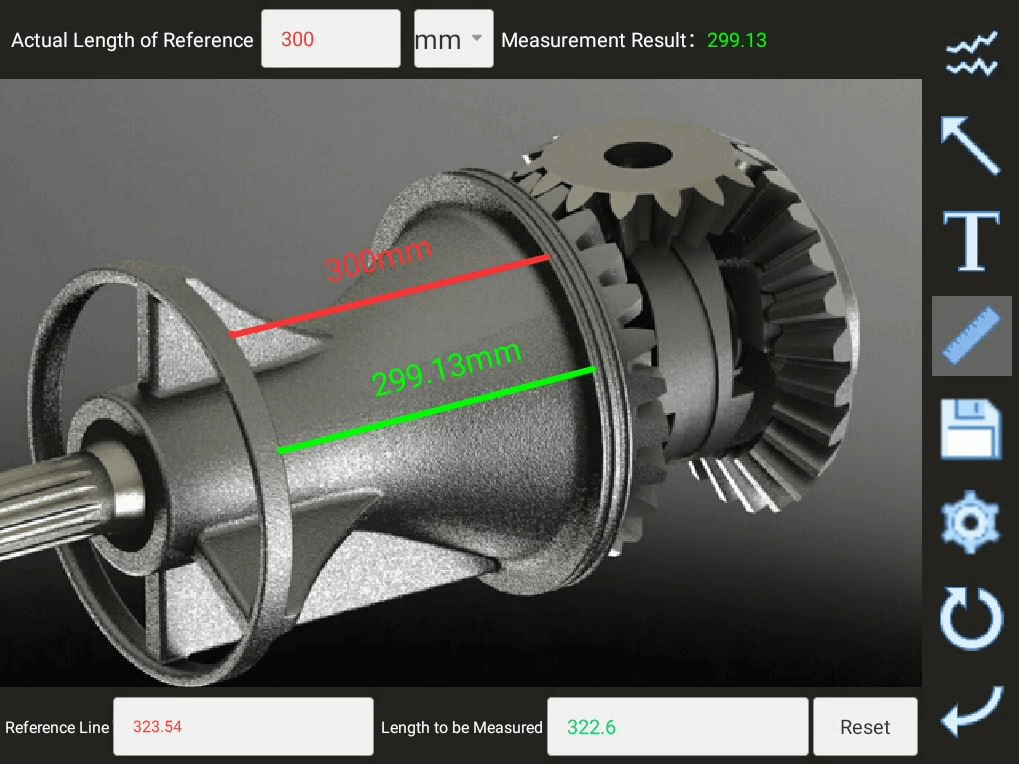

Interactive Analysis & Error Prevention: Manipulate the point cloud model by scaling and rotating for multi-angle review. The system provides real-time verification of selected measurement points, eliminating human selection error at the source.

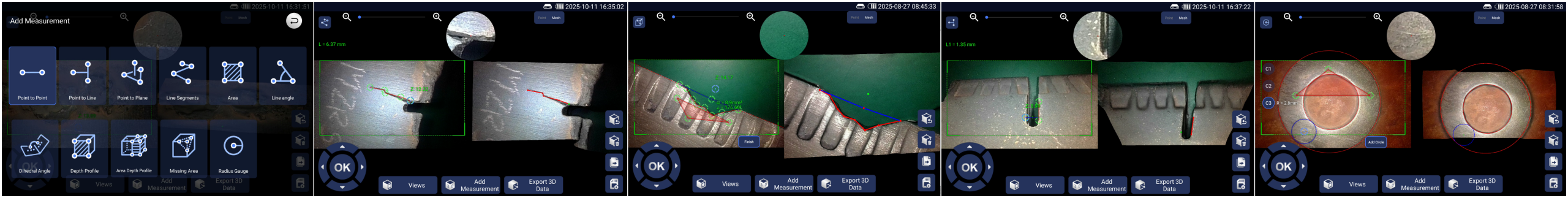

Comprehensive Toolset: Perform immediate analysis with a suite of 10+ built-in measurement tools (including distance, depth map, and profile analysis) for real-time distance measurement and in-depth diagnostics.
cloud map can be scaled, rotated, etc., real-time verification of the accuracy of the selected points, to avoid the inaccurate measurement results caused by the selection of points error.
2. Dual Megapixel High Sensitivity Industrial Camera
Dual Megapixel High Sensitivity Industrial Camera —— Can be equipped with dual megapixel HD lenses with advanced image sensors and optical systems, which can present clear, detailedimages that help to accurately observe and analyze the interior of the object being inspected.
3. Modular design, can be quickly disassembled and replaced
Modular design, can be quickly disassembled and replaced —ergonomically designed handle, easy to hold and one-handed operation; large-capacity removable rechargeable battery pack, providing strong endurance; replaceable handle, a host can be paired with multiple handles.
4.Easy and intuitive operation
Easy and intuitive operation —intelligent operating system, simple operation interface. Support menu-driven and key operation, easy to set and operate various functions, such as image shooting, storage, playback, and probe control. Yateks patented technology, step, fast and slow speed adjustment and fine-tuning locking function as well as motorized 360° steering control, maximum unidirectional 220° bending angle.

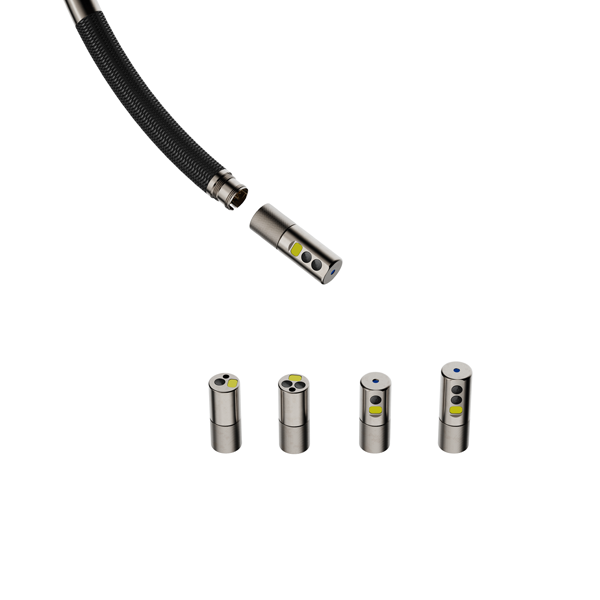

5.Durable & Replaceable Video Probes
Robust and durable — the host has a rugged shell and structure, the probe IP67 level waterproof, the probe part of the use of special materials and processes, with good abrasion resistance and corrosion resistance.
6.Good connectivity and expandability
Good connectivity and expandability – equipped with a variety of interfaces, such as USB-A, USB-C,HDMI, etc., convenient to connect with external devices and data transmission, support WLAN andBluetooth function, easy to communicate with other devices wirelessly and data sharing, to achieve remote operation and collaboration, improve work efficiency.
7. Powerful file processing capabilities
Powerful file processing capabilities ——allows for zooming in, zooming out, restoring, deleting, adding graffiti, comparsion measurement, and performing other operations on images. Both of photosand videos can be added with text annotations, facilitating the generation of later report.
APPLICATION:
Power generation/ Automotive technology and transportation / Process industry / Aviation
