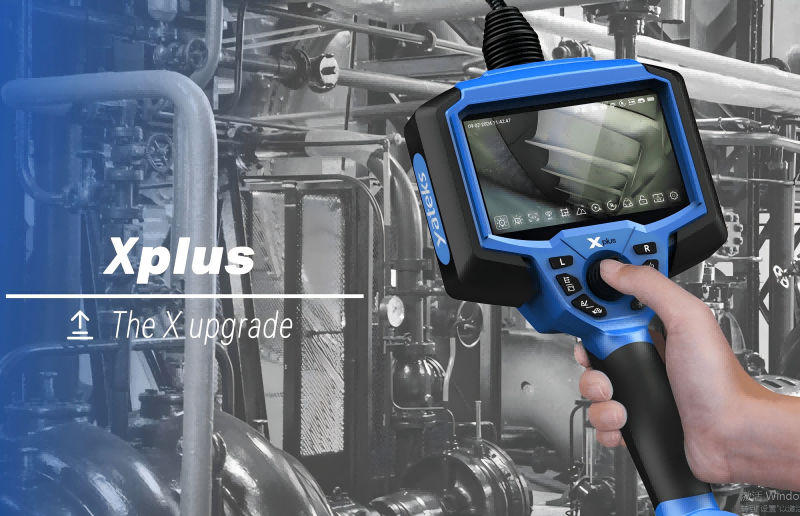

The Yateks X plus videoscope offers cutting-edge technology for conclusive inspections in harsh industrial environments The high-resolution, contrast-rich display can be adjusted to the brightness of the environment. The joystick control enables a precise, lag-free probe control, with automated and patented locking brake for steady probe orientation.
NEW FEATURES
System-/hardware- components
– 8GB RAM (Random Access Memory), upgradable
– Built-in 128 GB SSD (Solid State Disk)
– Audio socket for microphone connection and
dubbing of video recordings
– Two USB-A and one USB-C socket
– HDMI output for external HD screens
– Real-time clock (RTC) for measuring
defined time periods
Cameras and camera heads
– Probes with MPT (multipixel technology) in the CMOS
image sensors with different depth of field ranges
and viewing directions as well as multi-camera heads
– New camera heads with different illumination
technologies (white light fiber/LED/IR/UV)
– Built-in sensors, such as temperature sensors
– Various probe diameters from
2.3 mm – 8.4 mm diameter
– Probe material: Robust probe outer
skin with tungsten braiding
– Steering Map“ probe head positioning display
Operating system / software
– Based on the easy-to-use Android platform
– New intuitive operating concept with symbols and touchscreen
Upgradeable functions
– Optical recognition of signs, barcodes
and QR codes
– Detailed log files that show runtime,
operating temperature etc.
– OTA function (Over the Air / Remote Service
and software update)*
– Built-in WLAN/Bluetooth function
– Built-in, easy-to-use measurement
functions with 3D point cloud**
– Future AI functions (artificial intelligence)
run on the three built-in NPUs
(Neural Network Processing Units)
Application
