Yateks P Series 3D Measurement Industrial Endoscope

System

Category

Description

Dimension/Weight

246*321*123mm/2.3KG

Display screen

8″ IPS industrial HD touch LCD screen with resolution 1024*768(ratio 4:3)

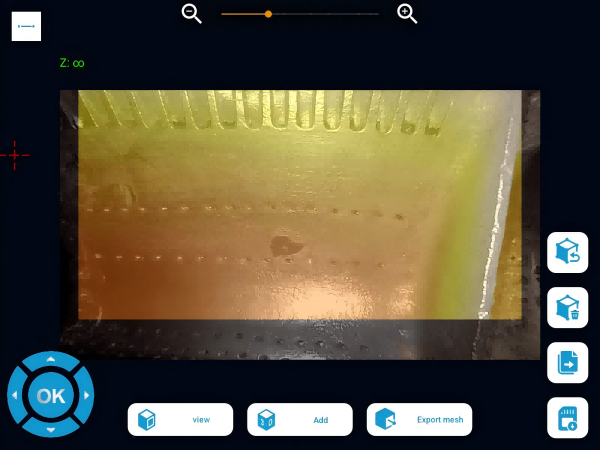

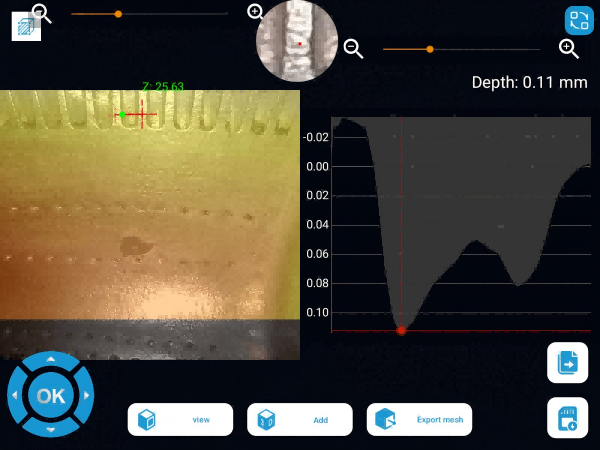

3D measurement

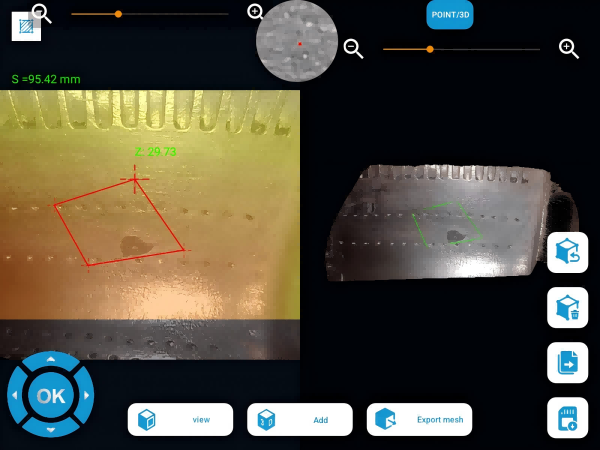

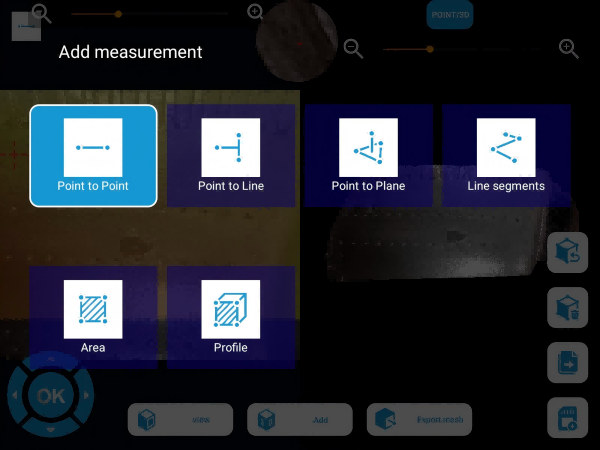

Point to point, point to line, point to surface, triangle area

Control lever

Electric rocker with lens able to rotate in 360-degree,automatic set, direction fine tuning adjustable

Functions

Photography, video, brightness control, locking and fine tuning

Storage

32G high speed SD card (UP TO 128G)

I/O port

SD card, HDMI port (1024*768) ,charge and mini USB

Battery/Standby time

4*18650 Lithium batteries(replaceable)

Brightness control

5 degrees each for high and low brightness adjustment,10 degrees in total

Combining form

Monitor + probe +cable, detachable

Compatibility

Support different diameter probes

Software

Operation system

Real time multitasking operation system

User interface

Touch screen operation menu

File management

Support image and video play, delete, format memo and naming

Image control

Zoom in/out(1.0X-1.5X,5 steps),playback, picture freeze-frame, image reversal, mirror image

Image format/Video format

JPEG,JPG/AVI(record date and time)

Language

English/Chinese/Korean/German/Russian/Japanese

Color settings

4 modes for different applications

White balance

Automatic/manual white balance

Exposure mode

Automatic/manual

Upgrade

Upgrade by SD card service pack

Operating environment

Monitor working temperature

-10～50°

video probe working temperature

-20～70°

Relative humidity

Highest 90%,no condensation

Waterproof

Monitor IP54/probe IP67
