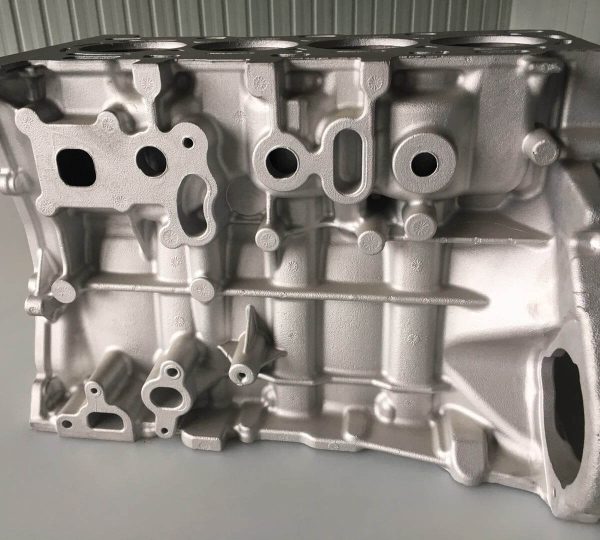

Automotive castings—whether aluminum or cast iron—are predominantly manufactured via the die-casting process. In this method, molten metal is injected into a precision steel mold, enabling the production of complex internal cavities and fluid passages that would be extremely difficult or cost-prohibitive to machine from a solid block.
Typical high-volume die-cast automotive components include:
- Cam housings
- Intake manifolds
- Balance shaft housings
- Wheels
- Transmission cases

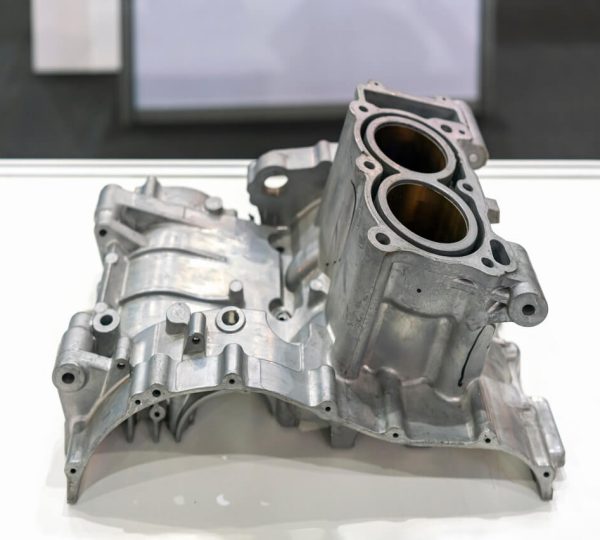

- Engine blocks
These parts deliver exceptional benefits: lightweight construction, high dimensional precision, and reliable pressure tightness. Yet they share a critical challenge: the internal conditions of castings are completely invisible during and after production.
This is exactly where Yateks industrial borescopes redefine quality control for die castings.
The Hidden Risks Lurking in Every Die Casting
While die-casting is a highly efficient manufacturing process, it is not immune to internal defects. Common hidden flaws include:
- Porosity and voids
- Incomplete filling & cold shuts
- Core shifts
- Internal flash and burrs in fluid passages
- Sand or oxide inclusions
These defects are undetectable by visual inspection of the part surface, but can lead to severe downstream failures:
- Oil or coolant leaks in cam housings and intake manifolds
- Balance shaft failures caused by internal voids
- Structural weakness and safety hazards in wheels
- Costly field failures, warranty claims, and even product recalls
Traditional inspection methods—weight testing, pressure decay testing, or X-ray—are either indirect, low-efficiency, or prohibitively expensive. In contrast, visual inspection with a industrial borescope provides direct, real-time, and cost-effective visibility into casting interiors.
Yateks Borescopes: Engineered for Automotive Die Casting Inspection

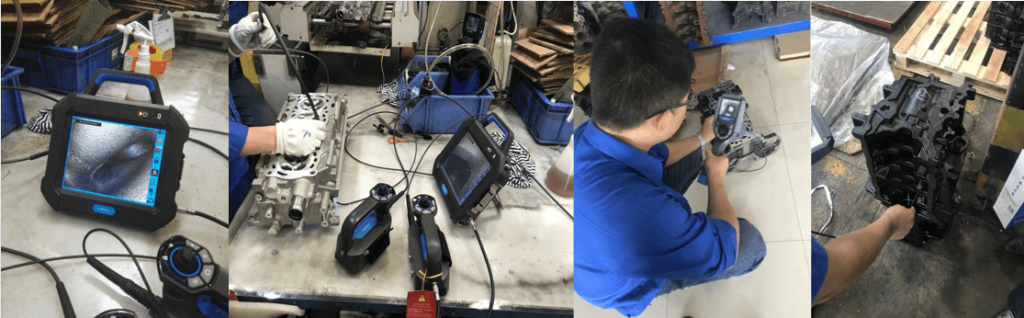

The Yateks Q Series articulating video borescope is purpose-built to navigate the intricate, complex internal geometries of automotive die-cast components.
Key Inspection Applications
| Component | Core Inspection Targets |
|---|---|
| Cam Housing | Oil passages, porosity, core shift |
| Intake Manifold | Internal flash, runner blockages, casting integrity |
| Balance Shaft Housing | Bore surface finish, hidden internal voids |
| Wheels | Rear-side porosity, internal rim condition |
| Engine Block | Water jacket cleanliness, residual casting sand |
Tangible Quality & Cost Benefits
- Catch defects before machining to eliminate wasted CNC time and scrap costs
- Verify process improvements to validate tooling and parameter adjustments
- Reduce destructive testing, lower sampling costs and inspect more parts
- Strengthen supplier quality management with documented internal condition records
Yateks industrial borescopes grant you full visual access to every internal cavity and passage of die castings—long before these components are assembled into engines, transmissions, or put into service on vehicles.
Request a Free Demo
Contact us to get a free demo unit for on-site testing. Inspect your own die-cast parts—cam housings, intake manifolds, balance shaft housings, wheels and more—and discover the hidden defects you’ve been missing.
