The Yateks Q Series Portable Industrial Borescope combines AR-enhanced camera technology, FHD imaging, and high frame rate video to deliver superior inspection performance in large, complex industrial environments. Designed for professionals working with aero engines, turbines, and wind turbine gearboxes, the Q Series ensures every detail is captured with clarity and precision.
AR Camera Technology | 2MP FHD | 100,000 Lux Illumination
Equipped with a 6mm forward-view AR camera, the Q Series delivers 2MP resolution at 1920×1080, capturing fine details with exceptional sharpness. The 85°±10° field of view and 50mm to infinity depth of field allow seamless inspection from close-range detail to broad-area coverage.
With 100,000 Lux illumination, the system provides wide-area lighting that brightens large interior spaces—eliminating shadows and improving visibility in deep cavities.
Industrial Borescope with High Frame Rate & Wide-Area Lighting
Unlike traditional borescopes that suffer from motion blur, the Q Series features a high frame rate that ensures smooth, fluid video output—even during dynamic inspections. This makes it ideal for complex, moving components where real-time clarity is critical.
Key Specifications
| Feature | Specification |
|---|---|
| Camera Type | FHD Forward-View AR Camera |
| Diameter | 6mm |
| Resolution | 2MP / 1920×1080 |
| Frame Rate | High Frame Rate (reduces motion blur) |
| Field of View | 85°±10° |
| Depth of Field | 50mm ~ ∞ |
| Illumination | 100,000 Lux |
| Protection | IP67 (dustproof & waterproof) |
Applications
-
Aero engine & turbine inspection
-
Wind turbine gearbox maintenance
-
Large industrial cavity & confined space inspection

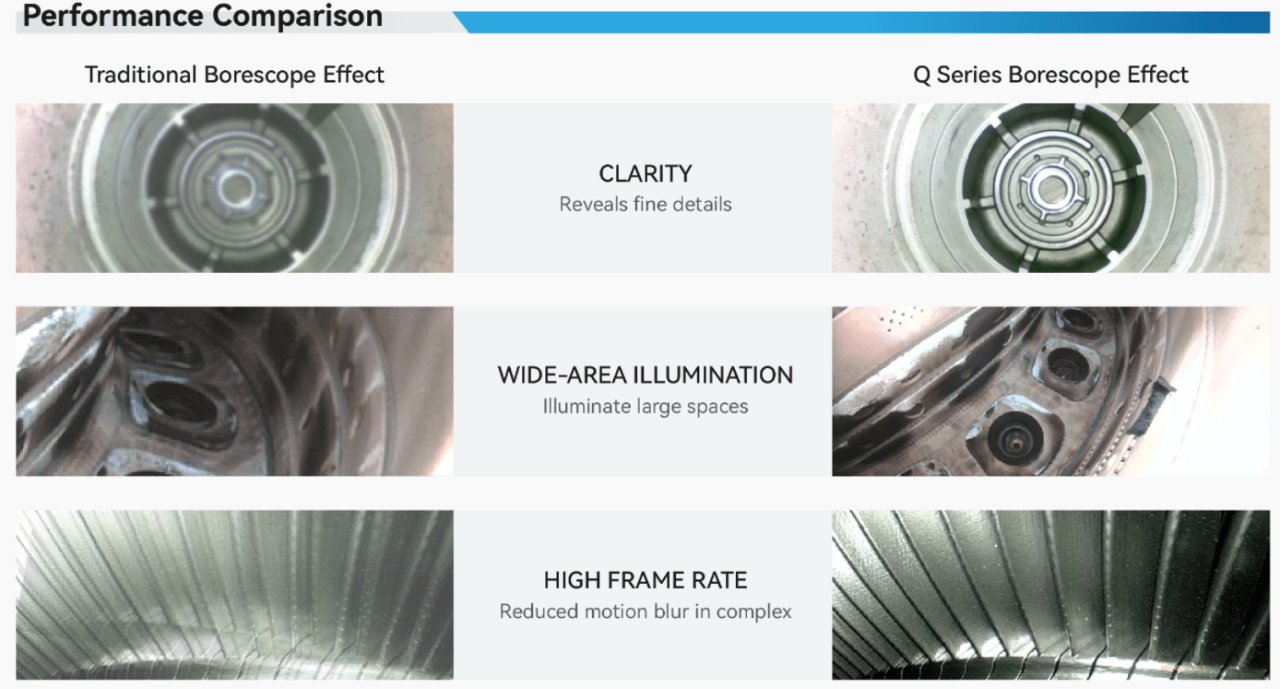

Why Choose the Yateks Q Series Portable Industrial Borescope?
-
AR Camera Intelligence – Real-time visual guidance for precise inspections
-
FHD Clarity – Reveals fine details with 2MP resolution
-
High Frame Rate – Reduces motion blur in complex environments
-
Powerful Illumination – 100,000 Lux for large-space visibility
-
Portable & Durable – IP67-rated for demanding industrial conditions
